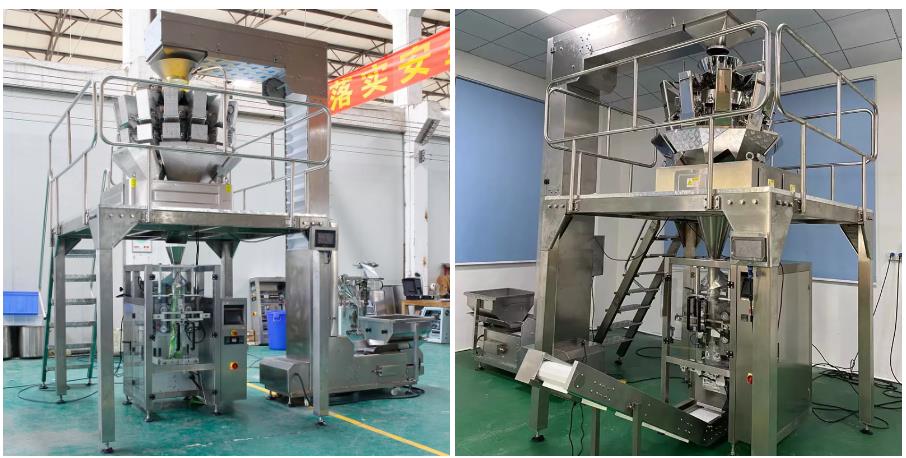

Granule Peanuts Packing Machine Large Vertical Vffs Packaging Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q3: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Specifications
| Model | | |
| Bag Making Size | L:60-250mm W:50-150mm | L:60-300mm W:60-200mm |
| Packing Speed | 40-100bags/min | 35-80bags/min |
| Power | 220V, 50/60HZ, 3KW | 220V, 50/60HZ, 3KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 300kg | 350kg |
| Machine Size | L1400*W1000*H1200mm | L1650*W1100*H1500mm |
| Model | | |
| Bag Making Size | L:80-350mm W:80-250mm | L:100-400mm W:100-300mm |
| Packing Speed | 30-80bags/min | 30-70bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 4KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 350kg | 400kg |
| Machine Size | L1650*W1200*H1600mm | L1650*W1200*H1600mm |
| Model | | |
| Bag Making Size | L:120-500mm W:120-400mm | L:150-800mm W:150-600mm |
| Packing Speed | 20-60bags/min | 5-30bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 5KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 450kg | 500kg |
| Machine Size | L2050*W1600*H2050mm | L2128*W2057*H2385mm |
Technical characteristics:
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
